Conduttimetro portatile – XS Tester Cond 5 – ECOPACK

IP67 waterproof conductivity meter for Conductivity and TDS and Salinity measurement. Automatic scale change. With microprocessor and interchangeable high-quality electrode. Large 3-color LCD display with indication of the standards used for calibration and measurement stability. 3-point button calibration with 3 standard values to choose from 84, 1413 µS and 12.88 mS. Temperature reading. Automatic temperature compensation with TR = 20/25 °C and adjustable coefficient TC = 0.00…4.00%/°C. TDS factor: 0.40…1.00. Self-diagnosis messages. Power supply 2 x 1.5V AAA batteries included, also compatible with rechargeable batteries. Auto power off. The Kit includes: 2 1.5V AAA batteries, strap and instructions.
1 year warranty on the electronic part.

Measurement range: COND 0.01 µS … 200 mS; TDS 0.01 ppm…199.9 ppt; Salinity 0.1 mg /l…100 g/l; °C: 0.0…60.0 (0.1 °C)

Data sheet

Performance:

Accuracy (Cond)± 2 % fondo scala
Accuracy (TDS)± 2 % fondo scala
Accuracy (Temperature)± 0,2 °C
Cond measuring range (max.)199,9 mS
Cond measuring range (min.)0,01 µS
Cond resolutionScala automatica
ParametersEC – TDS – T
Reference temperature (max.)25 °C
Reference temperature (min.)20 °C
Salinity measuring range (max.)100,0 g/l
Salinity measuring range (min.)0,01 mg/l
TDS Factor (max)1.00
TDS Factor (min)0.40
TDS measuring range (max.)199,9 ppt
TDS measuring range (min.)0,01 ppm
Temperature coefficent (max)4.00 % / °C
Temperature coefficent (min)0.00 % / °C
Temperature compensationSì
Temperature compensation (auto – manual)Automatica
Temperature measuring range (max.)60 °C
Temperature measuring range (min.)0 °C
Temperature resolution0,1 °C

Feature:

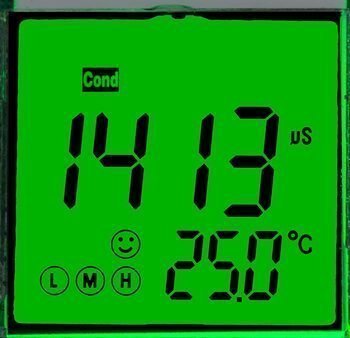

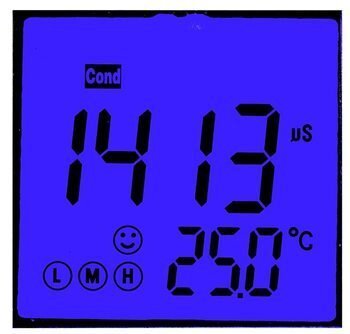

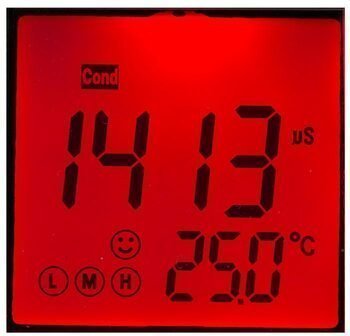

DisplayLCD backlit 3 colors
IP protectionIP 67
Reference temperature20 °C / 25 °C
Replaceable sensorYes
Spegnimento automaticoafter 8 minutes
Stability indicationYes
Standard approved pH84 µS / 1413 µS / 12,88 mS
Standard calibration points1…3

Supply:

Battery life> 200 hours
Power supply2 x 1,5 V batteries AAA

Dimension and Weight:

Dimension (instrument)40 x 200
Instrument weight110 g

Accessories:

GB50014413: Replace Cell Cond 5 tester
